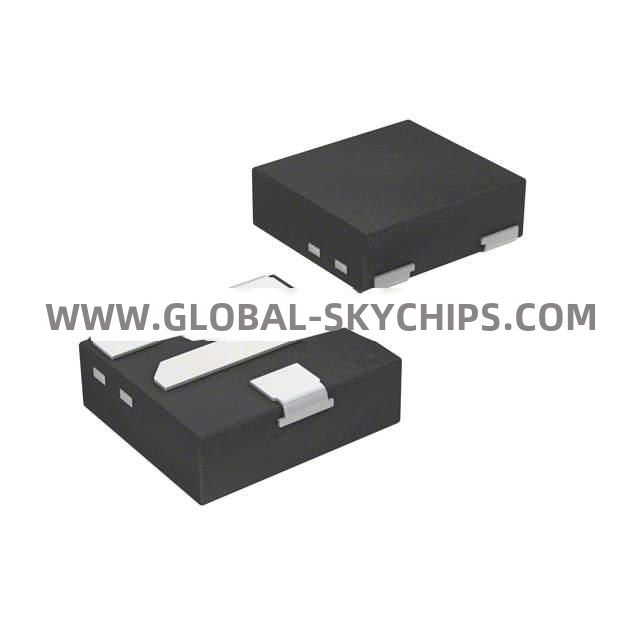

PMXB56EN

PMXB56EN

For Reference Only

Part Number PMXB56EN
Manufacturer Nexperia USA Inc.
Description MOSFET N-CH 30V 3.2A 3DFN
Package 3-XDFN Exposed Pad
In Stock 58,080 piece(s)
Unit Price Request a Quote
Lead Time Can Ship Immediately
Estimated Delivery Time Request a Quote
Request for Quotation
Payment Methods

Delivery Services

Part Number # PMXB56EN (Tantalum Capacitors) is manufactured by Nexperia USA Inc.. Being one of the leading electronics distributors, we carry many kinds of electronic components from some of the world’s top class manufacturers. Their quality is guaranteed by its stringent quality control to meet all required standards.

For PMXB56EN specifications/configurations, quotation, lead time, payment terms of further enquiries please have no hesitation to contact us. To process your RFQ, please add PMXB56EN with quantity into BOM. global-skychips.com does NOT require any registration to request a quote of PMXB56EN.

  • Specifications
  • Related Products
PMXB56EN Specifications
ManufacturerNexperia USA Inc.
CategoryDiscrete Semiconductor Products - Transistors - FETs, MOSFETs - Single
Package3-XDFN Exposed Pad
Series-
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds209pF @ 15V
Vgs (Max)±20V
FET Feature-
Power Dissipation (Max)400mW (Ta), 8.33W (Tc)
Rds On (Max) @ Id, Vgs55 mOhm @ 3.2A, 10V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1010D-3
Package / Case3-XDFN Exposed Pad

PMXB56EN Guarantees

Service Guarantees

We guarantee 100% customer satisfaction.

Our experienced sales team and tech support team back our services to satisfy all our customers.

Quality Guarantees

We provide 90 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.

Global Supply Chains - Reliable and Authorized Distributor Resources

Part Number Manufacturer Description Stock

PMXB56EN

 Nexperia USA Inc.

MOSFET N-CH 30V 3.2A 3DFN

 58,080
